ELEGAN - FR. CAST WHEEL COMP

1) 42753-KJ9-000      RM11.60

RIM VALVE(E1) 1

2) 44311-GW0-910     RM8.70
COLLAR FR WHEEL SIDE(E1)

3) 44601-H9A-000-SH      RM314.70
FR.CAST WHEEL(S-877C) (E1)

4) 44620-H3A-000      RM7.00
FR. AXLE DIST COLLAR(E1)

5) 44800-G22-000       RM97.90
SPDMT GEAR BOX ASSY(E1)

6) 45121-H3A-000      RM277.40
FR. BRAKE DISK(E1)

7) 90105-KR3-000      RM3.40
FR. DISK BOLT 8X24 (E1)

8) 90754-M9Q-000-M2    RM1.90
DUST SEAL 20X32X5 (E1)

9) 90912-M9Q-000-M1    RM13.90
BEARING 6201TU/2A (E1)

10) 91258-M9Q-000-M2    RM4.60
SPEEDOMETER GEAR BOX SEAL (E1)

11) 93700-05018-0A       RM1.10
SCREW OVAL 5X18(E1)

12) 1T011108012-6029    RM357.10
FR. TUBELESS TIRE 6029 61L (E1

13) 44301-G22-900      RM11.60
FR. WHEEL AXLE (E1)

14) 90306-M9Q-000    RM8.70
SELF-LOCK NUT 12MM(E1)

ELEGAN - FR. CUSHION ASSY

1) 45156-H3A-000      RM4.60
FR BRAKE HOSE CLAMP(E1) 1


2) 45451-N02-000      RM3.50
WIRE GROMMET(E1)

3) 50301-M9Q-000    RM10.70
RACE UP. STRG. BALL(E1)

4) 50301-G02-000      RM11.60
RACE STRG. BOT BALL (E1)

5) 50306-M9Q-000    RM7.80
STRG.STEMLOCK NUT(E1)

6) 51425-H9A-000     RM13.90
FR.CUSHION BOOT (E1)

7) 51400-H9A-000     RM349.40
R FR. CUSHION ASSY(E1)

8) 51500-H9A-000     RM349.40
L FR. CUSHION ASSY(E1)

9) 53200-H9A-000     RM201.30
STRG. STEM COMP(E1)

10) 53211-M9Q-000     RM9.30
STRG. TOP CONE RACE(E1)

11) 53212-G02-000       RM12.20
STRG. BOTTOM CONE RACE(E1)

12) 53214-G02-000       RM1.20
STRG. DUST SEAL(E1)

13) 53215-G02-000       RM1.20
DUST SEAL WASHER(E1)

14) 61100-H9A-000-AG     RM105.10
FR. FENDER (E1)

14) 61100-H9A-000-KV     RM105.10
FR. FENDER - FL (E1)

14) 61100-H9A-000-QG     RM150.00
FR. FENDER (WT-464) -PW (E1)

14) 61100-H9A-000-RT      RM105.10
FR. FENDER (R-010CA) (E1)

14) 61100-H9A-000-SQ     RM105.10
FR. FENDER(S-880S) (E1)

15) 90164-M9Q-000           RM1.90
SPECIAL SCREW 6MM(E1)

16) 95801-06012-08           RM1.10
FLANGE BOLT 6X12(E1)

17) 95801-10040-08           RM1.90
BOLT FLANGE 10X40(E1)

18) 96211-05000                RM1.20
BALL STEEL 5(E1)

19) 96211-06000                RM0.80
STEEL BALL (E1)

20) 91255-H9A-000           RM20.60
FR. CUSHION OIL SEAL (E1)

21) 91256-H9A-000           RM5.90
OIL SEAL33X46.3/51X5.6/14 (E1)

ELEGAN - HEAD LIGHT FR. COVER

1) 33100-H9B-000      RM270.10

HEAD LIGHT ASSY(E1) 1

2) 33400-H9B-000      RM44.30
R WINKER ASSY(E1)

3) 33450-H9B-000      RM43.50
L WINKER ASSY(E1)

4) 5327G-H9P-000-KV      RM175.40
SPEEDOMETER VISOR ASSY (E1)

5) 64301-H9A-000-AG      RM264.10
FR. COVER (E1)

5) 64301-H9A-000-KV     RM264.10
FR. COVER - FL (E1)

5) 64301-H9A-000-QG     RM370.00
FR. COVER (WT-461) - PW (E1)

5) 64301-H9A-000-RT      RM264.10
FR. COVER(R-010CA) (E1)

5) 64301-H9A-000-SQ     RM264.10
FR. COVER(S-880S) (E1)

6) 90106-H2G-000            RM0.60
WASHER SCREW 4X12(E1)

7) 90110-GZ0-000            RM2.40
SCREW SPECIAL 6X14 (E1)

8) 93903-34320                RM0.60
TAPPING SCREW 4X12(E1)

9) 93903-35320                RM1.10
TAPPING SCREW 5X16(E1)

10) 93903-44380              RM1.50
SCREW TAPPING 4X12(E1)

11) 34905-M70-000         RM10.70
WINKER BULB 12V/10W (E1)

12) 34901-M91-010         RM41.30
BULB HEAD LIGHT 12V35/35W(E1)

13) 33402-H9A-000         RM18.70
R WINKER LENS(E1)

14) 33452-H9A-000         RM18.70
L WINKER LENS(E1)

15) 50611-H9D-000-KA    RM22.80
RADIATOR AIR DUCT(BK-001U) (E1)

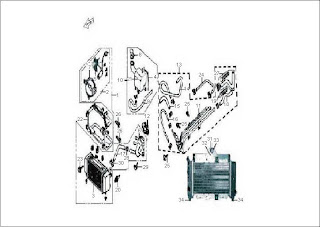

ELEGAN - RADIATOR SHROUD ASSY

.

1) 19000-H9A-000      RM687.00

RADIATOR SHROUD ASSY(E1) 1

2) 19005-H9A-000      RM287.50
SHROUD ASSY(E1)

3) 19010-H9A-000      RM387.30
RADIATOR COMP(E1)

4) 19109-H9A-010      RM31.50
RESERVE TANK TUBE (E1)

5) 19009-H9A-000      RM18.70
COOLING FAN COMP (E1)

6) 19039-H9A-000      RM30.30
FILLER NECK TANK(E1)

7) 19015-H9A-000      RM28.00
SHROUD ASSY (E1)

8) 19104-M9Q-000     RM3.90
RESERVE TANK CAP (E1)

9) 95001-80550-40      RM12.10
FILLER TUBE RESERVE(E1)

10) 1910A-H9A-000   RM65.30
RESERVE TANK ASSY(E1)

11) 19110-H9A-000    RM228.40
R WATER PIPE COMP(E1)

12) 19111-H9A-000    RM39.60
RADIATOR FILLER CAP(E1)

13) 1911A-H9A-000   RM349.40
R WATER PIPE ASSY(E1)

14) 19121-H9A-000    RM28.00
RAD. INLET HOSE(E1)

15) 19123-H9A-000    RM16.40
RAD. OUTLET HOSE(E1)

16) 19124-H9A-000    RM13.90
RAD. HOSE A(E1)

17) 19125-H9A-000    RM13.90
RAD. HOSE B(E1)

18) 19503-H9A-000    RM16.40
WATER HOSE C(E1)

19) 19604-H01-000     RM6.50
L WATER HOSE GUARD WIRE(E1)

20) 37760-V01-000     RM78.40
THERMO SWITCH ASSY(E1)

21) 19101-H9A-000    RM41.90
RESERVE TANK(E1)

22) 50310-H9A-300    RM85.00
RADIATOR MOUNTING BRACKET(E1)

23) 93404-06020-00    RM1.10
WASHER BOLT 6MM(E1)

24) 95001-35325-60    RM16.70
THERMOSTAT TUBE(E1)

25) 95801-06012-08    RM1.10
FLANGE BOLT 6X12(E1)

26) 95801-08065-08    RM2.40
FLANGE BOLT 8X65(E1)

27) 1950A-H9A-000    RM20.00
WATER HOSE A(E1)

28) 91405-SS0-003      RM9.30
WATER HOSE CLAMP (E1)

29) 90111-162-000B    RM2.90
BOLT FLANGE 6MM (E1)

30) 90682-SB0-671      RM4.20
HOSE CLAMP(E1)

31) U02300-10285       RM10.60
DAMPER COLLAR(E1)

32) U02300-10560       RM15.70
RAD. MONTING BRACKET(E1)

33) U02300-10581       RM10.60
DAMPER RUBBER(E1)

34) U02300-10582       RM10.60
DAMPER RUBBER(E1)

ELEGAN - SPEEDOMETER ASSY

1) 33709-B3D-000      RM1.40

TAIL LIGHT SETTING RUBBER(E1)

2) 37200-H85-000       RM574.90
SPEEDOMETER ASSY - FL (E1)

2) 37200-H9B-020       RM1006.90
SPEEDOMETER ASSY (E1)

3) 37204-H9A-000       RM55.00
METER LENS (E1)

4) 44830-H85-000        RM121.20
SPEEDOMETER CABLE COMP -FL (E1)

4) 44830-H9A-007        RM16.00
SPEEDOMETER CABLE COMP (E1)

5) 53208-H9A-000        RM18.30
SPEEDOMETER COVER(E1)

6) 53209-H9A-000        RM6.90
SPEEDOMETER STAY(E1)

7) 90302-L03-000         RM3.80
WASHER NUT 6MM(E1)

8) 93903-25380             RM0.60
SCREW TAPPING 5X16(E1)

9) 93903-35380             RM0.60
TAPPING SCREW 5X16(E1)

10) 95801-06012-08      RM1.10
FLANGE BOLT 6X12(E1)

11) 35042-HLK-010      RM38.60
LED BULB(WHITE SHARE) (E1)

12) 33130-HLA-000       RM21.00
SOCKET COMP. (E1)

13) 38000-H9A-001       RM23.30
METER DRIVE GEAR ASSY (E1)

ELEGAN - FR/RR CALIPER ASSY

1) 43100-H9A-900      RM296.60

RR. CALIPER ASSY (E1)

3) 45100-H3A-900      RM272.40
L.FR CALIPER ASSY (E1)

4) 45105-H3A-000-E   RM36.40
FRONT BRAKE PAD (2ND/B)

5) 45126-H9A-000       RM219.10
FR BRAKE HOSE COMP(E1)

6) 45156-H3C-000       RM4.60
FR BRAKE HOSE CLAMP(E1)

7) 43108-H9D-000-E   RM36.40
REAR BRAKE PAD (2ND/B)

9) 53175-H9D-000       RM35.00
R HANDLE LEVER(E1)

10) 53178-H9D-000     RM35.00
L HANDLE LEVER(E1)

11) 90104-H9A-000     RM2.90
FLANGE BOLT 8X45(E1)

12) 90106-H21-900      RM1.90
FLANGE BOLT 8X34(E1)

13) 90110-T53-000       RM1.90
FLANGE BOLT SH.6X12(E1)

14) 90145-M9Q-000     RM4.80
OIL BOLT 10X22(E1)

15) 90545-M9Q-000     RM1.50
OIL BOLT WASHER(E1)

16) 95801-06012-08      RM1.10
FLANGE BOLT 6X12(E1)

17) 43126-H9A-000       RM333.20
RR BRAKE HOSE ASSY(E1)

18) 45500-H9P-000        RM358.80
FR. MASTER CYLINDER ASSY (E1)

19) 43500-H9D-010        RM303.60
RR.MASTER CYL. ASSY (E1)

20) 32106-H9A-000        RM9.00
SUB HARNESS(E1)

21) 35340-M9Q-900       RM23.30
FR. HANDLE STOP SWITCH (E1)

22) 35350-KBN-900       RM20
RR. HANDLE STOP SWITCH (E1)

ELEGAN - HANDLE COVER HANDLE STRG. COMP

1) 7910-H9A-000      RM35.20

THROTTLE CABLE COMP(E1)

2) 35150-H9B-000    RM118.70
 R HANDLE SW.ASSY(E1)

3) 35200-H9A-000    RM132.80
 L HANDLE SW.ASSY(E1)

4) 53100-H85-000     RM139.80
 HANDLE STRG. COMP - FL (E1)

4) 53100-H9B-900     RM146.50
 HANDLE STRG. COMP (E1)

5) 53105-H3A-900     RM13.70
 STRG.HANDLE END(E1)

6) 53125-M9Q-000    RM10.30
 HANDLE SET COLLAR(E1)

9) 53140-H9A-000     RM10.60
 R HANDLE GRIP(E1)

11) 53166-H3A-000    RM10.60
 L HANDLE GRIP(E1)

12) 53205-H9A-000-KA    RM16.10
 FR. HANDLE COVER(BK-001U) (E1)

13) 53206-H9A-000-KA    RM18.30
 RR. HANDLE COVER BK-001U (E1)

14) 90106-M9Q-000           RM3.80
 FLANGE BOLT 10X50(E1)

16) 90304-M9Q-000     RM6.80
 FLANGE U NUT 10MM(E1)

18) 91508-A26-000       RM1.90
 PAN SCREW 5X7(E1)

19) 93903-44380           RM1.50
 SCREW TAPPING 4X12(E1)

20) 95801-06012-08      RM1.10
 FLANGE BOLT 6X12(E1)

22) 88110-H9D-000       RM51.30
 R BACK MIRROR ASSY(E1)

23) 88120-H9D-000       RM51.30
 L BACK MIRROR ASSY(E1)
